Roof & Wall Panels
Premium Cladding, Insulation & Secondary Structural Systems
Your trusted partner for engineering-grade, highly durable, and weather-tight building envelopes. We design, manufacture and supply a full spectrum of roof and wall panel systems, structural secondary members, and architectural accessories — engineered for modern industrial, commercial and infrastructure projects, with single-source accountability for your entire building exterior.

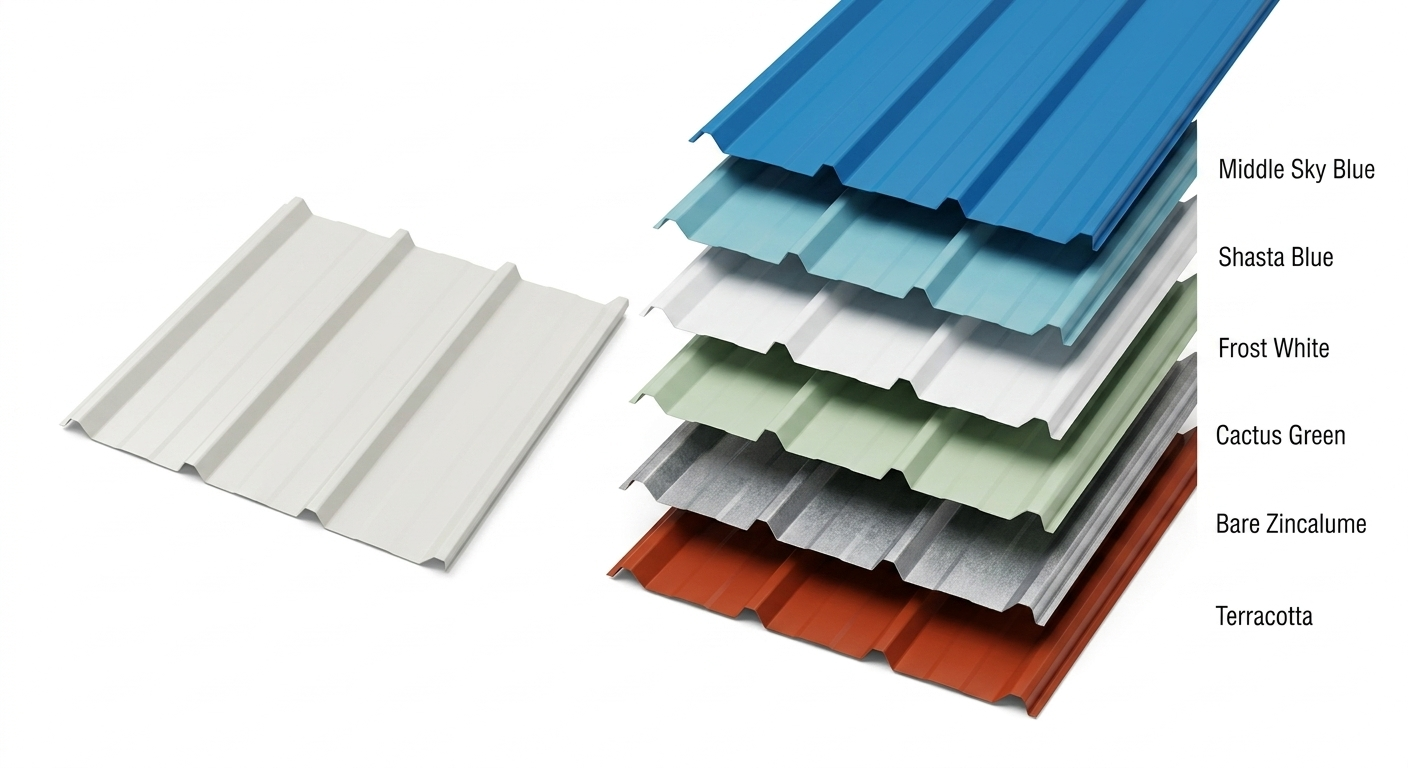

Shiv Baba High-Performance Single-Skin Panels
Our industrial-grade single-skin metal cladding profiles offer the perfect balance of high structural strength, aesthetic variety, and cost efficiency. Manufactured from premium, high-tensile base metals, these panels feature superior protective coatings — such as high-durability polyester finishes over an advanced alloy substrate — ensuring long-term resistance to corrosion and harsh environmental conditions.
- Advanced Load Resilience: Engineered to withstand extreme structural forces, including heavy uniform loads and severe wind uplift pressures in cyclonic regions.
- Aesthetic & Finish Versatility: A diverse spectrum of standard industrial colors, architectural coatings and customizable nominal thicknesses to precisely align with your design specifications.
Core Profiles & Applications
- Standard Roof Systems — optimized high-rib structural profiles for efficient drainage and maximum span between secondary framing.
- Wall & Liner Profiles — ideal for exterior architectural walls, internal partitions, soffits and interior liners.
- Mezzanine Decking Systems — high-strength unpainted or pre-galvanized deck profiles designed as high-capacity formwork for reinforced concrete floor slabs.

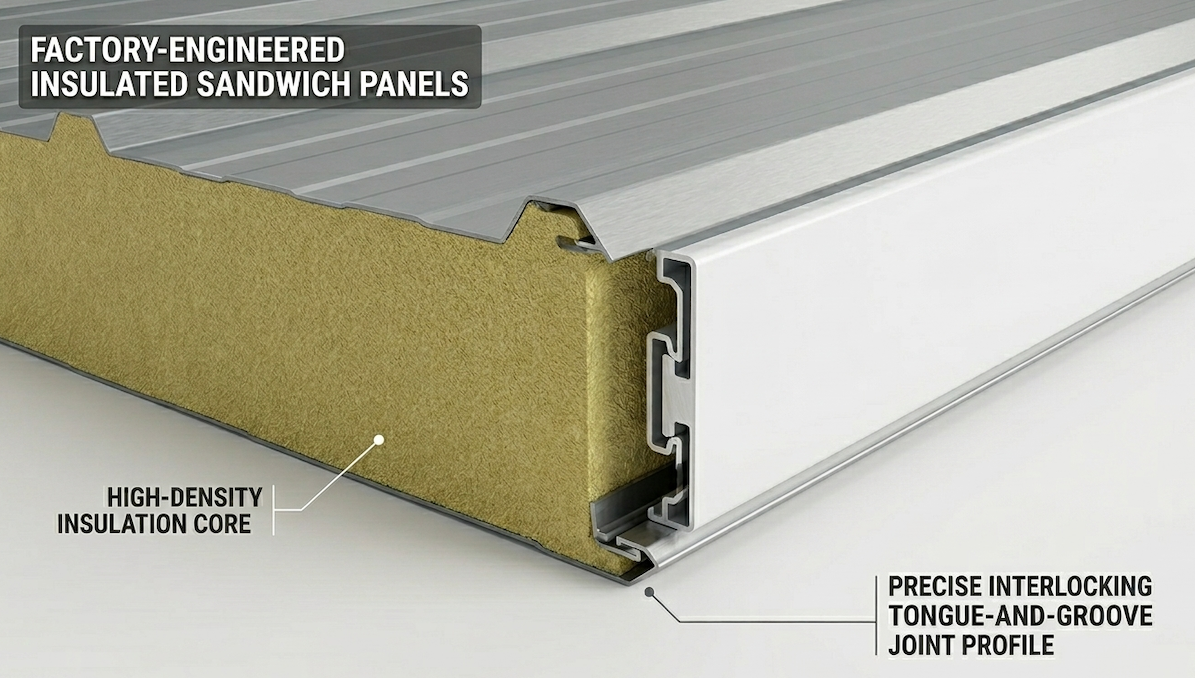

Shiv Baba Factory-Engineered Insulated Sandwich Panels
As global energy standards evolve, managing thermal transmission is critical to reducing operational overhead. Our factory-insulated sandwich panels feature a high-density, factory-injected polyurethane or specialized foam insulation core bound securely between two durable metal skins.
Advanced interlocking tongue-and-groove joint profiles with concealed fasteners eliminate exposed penetrations, boosting both structural security and architectural elegance.
Key Performance Benefits
- Superior Thermal Efficiency: Exceptional resistance to heat transmission — dramatically lowering HVAC energy costs and maintaining indoor ambient temperatures.
- Mechanical Strength, Lightweight Build: High rigidity enables longer spans, reducing weight and the cost of the supporting structural steel framework.
- Environmental Resilience: Built-in biological and chemical resistance, zero water absorption and excellent dimensional stability across extreme temperature swings.
- Streamlined Installation: Rigid laminated construction speeds up on-site handling and installation, drastically reducing project timelines.
Ideal Applications
- Warehouses, cold storage & logistics hubs
- Manufacturing plants & heavy industrial facilities
- Commercial showrooms, office blocks & malls
- Aviation hangars & enclosed sports arenas
- Educational institutions, airports & public infrastructure

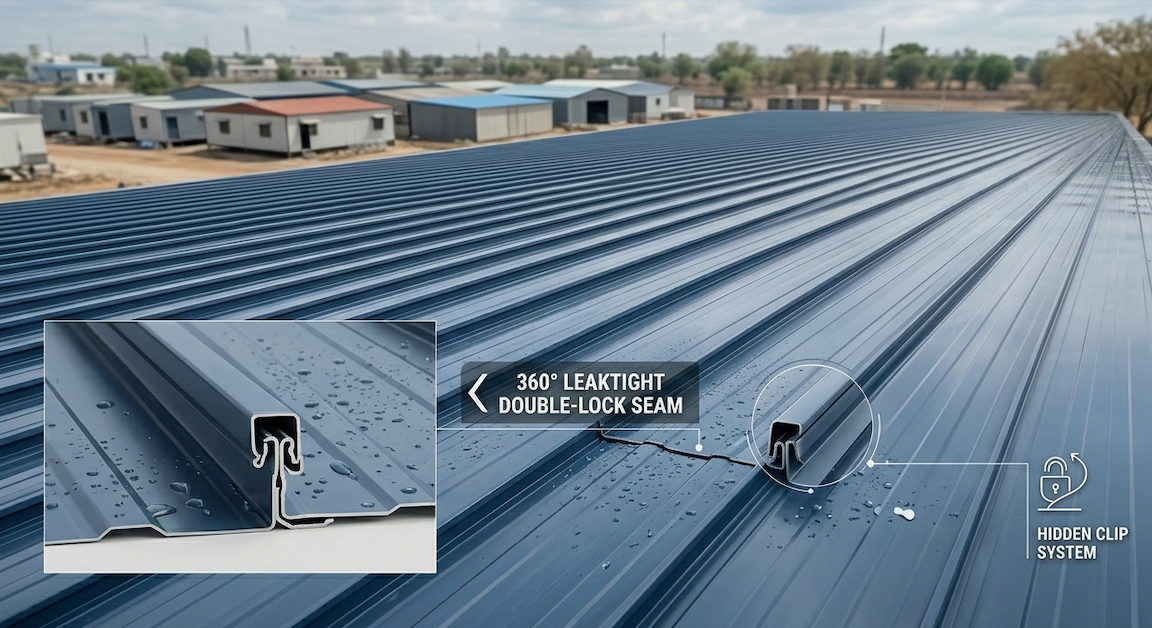

Advanced Standing Seam Roof Systems
For ultimate weatherproofing in challenging environments, Shiv Baba delivers a continuous, leak-proof, monolithic standing seam roofing system — highly recommended for locations prone to heavy rainfall, snow or high-velocity cyclonic winds.
Advanced System Engineering
- 360° Double-Lock Seam: Adjacent panels are mechanically rolled together on-site using a specialized auto-seamer, creating a tight 360° double-lock seam embedded with factory-applied butyl sealant for an absolute water-tight barrier.
- Thermal Expansion Management: An innovative articulating clip system lets the roof expand and contract freely under temperature fluctuations without stressing the primary structure or distorting the panels.
- Continuous Site-Rolled Lengths: Mobile on-site roll-forming technology produces single, continuous panel profiles up to 90 meters long — completely eliminating leak-prone end-laps.
- The Ultimate Re-Roofing Solution: Designed to install directly over failing, traditional through-fastened rib roofs without removing the existing structure — minimizing business downtime.
Cold-Formed Structural Secondary Framing (Purlins & Girts)
The integrity of any building envelope depends entirely on its supporting framework. We manufacture cold-formed, high-tensile steel secondary structural members that bridge the gap between the main primary frames and the outer cladding.
- Pre-Engineered "Z" Purlins: Designed for roofing supports, with asymmetrical lips that allow easy nesting and continuous lapping across frames — maximizing structural efficiency.
- Pre-Engineered "C" Girts: Optimized with symmetrical flanges — the industry standard for wall framing, door openings and window framing support.

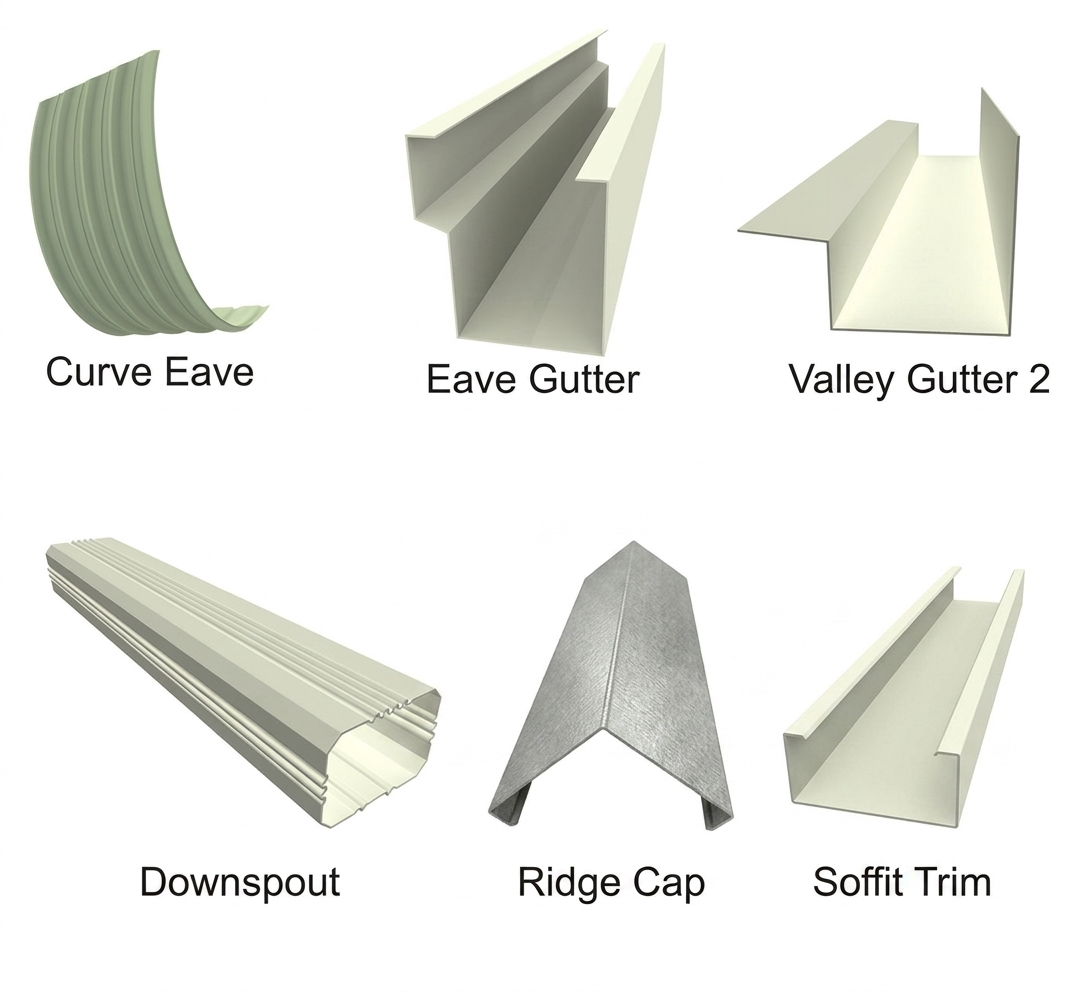

Architectural Flashings, Louvers & Accessories
A building envelope is only as reliable as its weakest joint. To guarantee total weather-tightness and visual continuity, Shiv Baba supplies a complete suite of precision-matched component accessories.
- Integrated Rainwater Systems: High-capacity eave gutters, downspouts and curved eaves engineered to handle heavy downpours efficiently.
- Wall Flashings & Trims: Custom-formed ridge panels, wall flashings and transitions engineered from the exact same base metal, substrate coating, thickness and color profile as your main panels — preventing material conflict and uneven weathering.

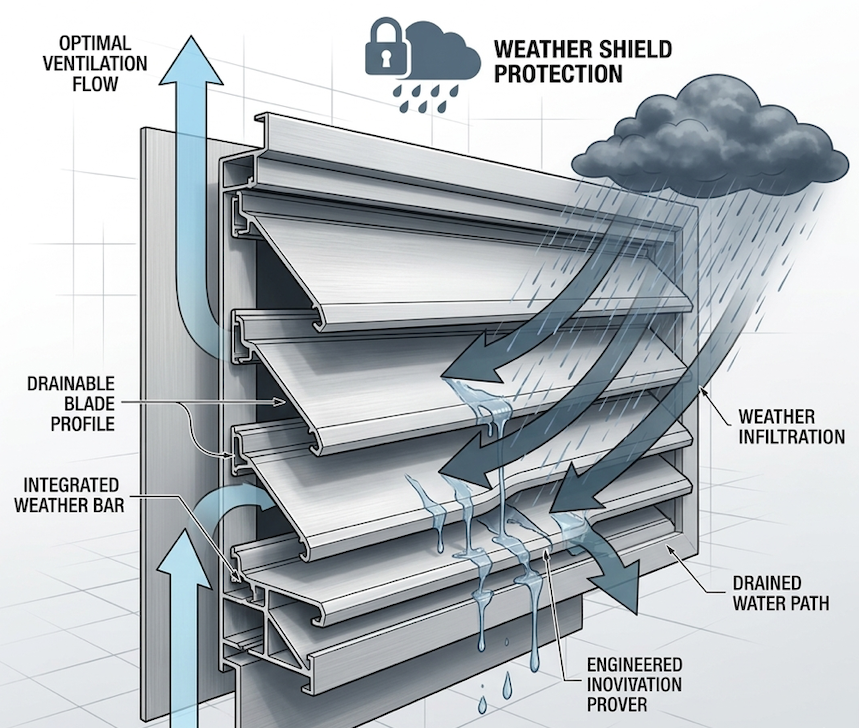

- Engineered Industrial Louvers: Specially profiled wall louvers that deliver optimal natural ventilation and airflow while acting as a reliable shield against driving wind and rain.
State-of-the-art manufacturing. Precise engineering. Building envelopes that last.
From standard industrial warehouses to complex commercial architecture, our team ensures seamless execution, top-tier raw materials and uncompromising quality control at every stage of production and installation.
Engineering-Grade Durability
High-tensile substrates and protective coatings for long service life.
Thermal Performance
Insulated panels that cut HVAC load and stabilize indoor temperatures.
Weather-Tight Envelope
Leak-proof seams, matched flashings and drained louvers — no weak joints.
Cyclonic Wind Resistance
Profiles and clip systems engineered for severe wind uplift pressures.
Single-Source System
Panels, purlins, flashings and accessories from one manufacturer.
Fast On-Site Installation
Pre-engineered, precision-matched parts that go up quickly.
Specify your building envelope with Shiv Baba.
Share your project requirements — panels, insulation, secondary framing and accessories, engineered and supplied from one source.
Request a Quote
